AAAC Cable
- Conductor: High-strength heat-treated aluminum-magnesium-silicon alloy (Al-Mg-Si 6201-T81), Class 2 concentric stranded per IEC standards
- Stranding Structure: Concentric lay stranded construction, uniform lay length for consistent mechanical and electrical performance
- Surface Finish: Smooth, oxide-free surface for optimal electrical contact and enhanced corrosion resistance
- Permanent Marking: Continuous length marking, alloy grade, size and standard compliance printed along the conductor length
Product Introduction
APPLICATION
AAAC (All Aluminum Alloy Conductor) are designed for reliable overhead power transmission and distribution in low & medium voltage electrical networks, with an exceptional strength-to-weight ratio and superior corrosion resistance. They are widely used in:
- Urban and rural power grid renovation and overhead line expansion projects
- Coastal and high-corrosion industrial area power distribution networks
- Long-span overhead transmission lines for solar & wind farm grid connection
- Rural electrification projects and secondary distribution lines
- Hilly, mountainous and high-tension overhead line installations
These conductors can be installed on overhead transmission towers, utility poles, and long-span structures, with outstanding resistance to atmospheric corrosion, mechanical fatigue, and environmental aging, delivering a longer service life than traditional AAC conductors in harsh operating environments.
CONSTRUCTION
- Conductor: High-strength heat-treated aluminum-magnesium-silicon alloy (Al-Mg-Si 6201-T81), Class 2 concentric stranded per IEC standards
- Stranding Structure: Concentric lay stranded construction, uniform lay length for consistent mechanical and electrical performance
- Surface Finish: Smooth, oxide-free surface for optimal electrical contact and enhanced corrosion resistance
- Permanent Marking: Continuous length marking, alloy grade, size and standard compliance printed along the conductor length
CHARACTERISTICS
- Voltage Rating: Suitable for LV/MV overhead lines up to 36 kV (customizable for higher voltage transmission networks)
- Temperature Rating:
- Continuous operating: 90°C
- Emergency overload: 120°C (short duration)
- Mechanical Performance: High tensile strength (min. 295 MPa for standard grade), excellent sag control for long-span installations
- Corrosion Resistance: Superior atmospheric corrosion resistance, ideal for coastal, industrial pollution, and high-humidity environments
- Electrical Performance: Stable DC resistance per international standards, excellent current-carrying capacity for efficient power distribution
- Weight Advantage: Lower density than steel-reinforced conductors, reduced tower load and lower installation cost for long-span projects
STANDARDS
- ASTM B399: Standard Specification for Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors for Overhead Electrical Transmission
- IEC 61089: Round wire concentric lay overhead electrical stranded conductors
- BS EN 50182: European standard for round wire concentric lay overhead electrical stranded conductors
- ICEA S-66-524: North American standard for overhead aluminum alloy conductors
- AS/NZS 1531: Australian/New Zealand standard for overhead stranded aluminum alloy conductors
Other Overhead Cable
ACSR Conductor Cable
Aluminum Conductor Steel Reinforced – ACSR overhead cables combine high aluminum conductivity with high steel strength, ideal for long-distance, high-voltage, and large-span overhead transmission lines.
ABC Cable
ABC Cable (Aerial Bundled Cable) is a compact, overhead insulated power cable widely used for low-voltage power distribution in urban, rural, and residential areas.

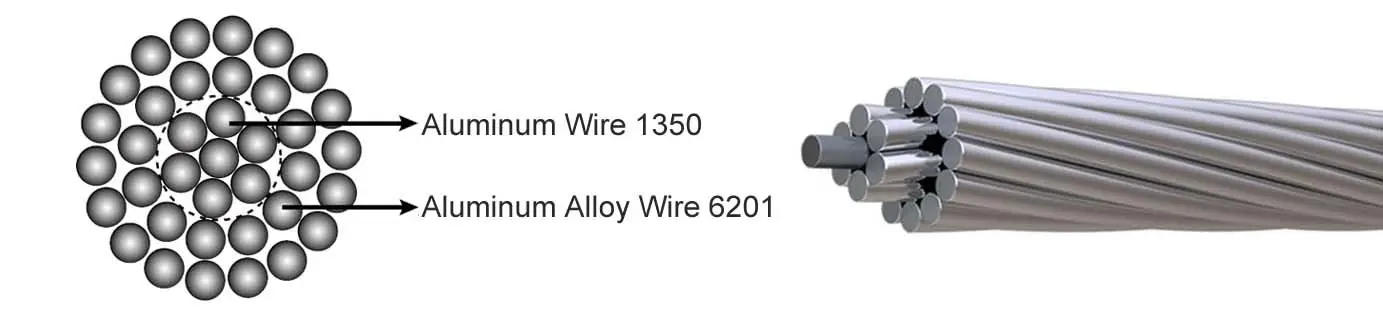

ACAR Conductor Cable
