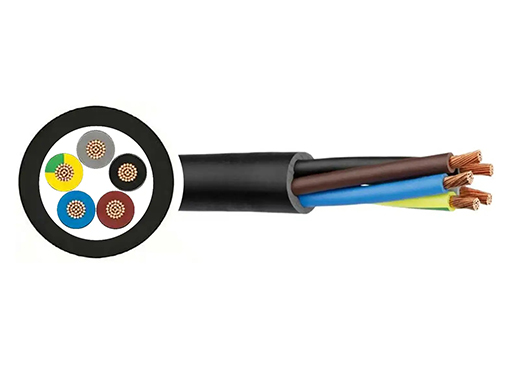

H05RR-F Cable
- Voltage Rating Uo/U: 300/500V
- Temperature Rating: -25°C to +60°C (Operating)
- Minimum Bending Radius: 4 x overall diameter (Flexed)
- STANDARDS: EN 50525-2-21, IEC 60245-4, CEI 20-19, VDE 0282
Product Introduction
Description of H05RR-F Cable:
H05RR-F Cable is a flexible, light-to-medium duty rubber cable designed for everyday indoor appliances, portable tools, and office equipment.
Offering excellent flexibility and protection against low mechanical stress, it is ideal for domestic environments, commercial kitchens, workshops, and temporary outdoor power supplies.
CONSTRUCTION:
Conductor: Class 5 flexible bare copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: Synthetic Rubber Compound (Type EM3)
Core Identification: 2 to 5 core, standard color coding
Technique Data of Our H05RR-F Cable:
| Nominal Cross-Section (mm²) | Max. Resistance at 20°C (Ω/km) | Outer Diam. (Approx) (mm) | Cable Weight (Approx.) (kg/km) |
|---|---|---|---|
| 3 x 1.5 | 13.3 | 8.7 | 112 |
| 3 x 2.5 | 7.98 | 10.4 | 166 |
| 3 x 4 | 4.95 | 12.5 | 234 |
| 3 x 6 | 3.30 | 14.4 | 319 |
| 4 x 1.5 | 13.3 | 9.7 | 140 |
| 4 x 2.5 | 7.98 | 11.6 | 207 |
| 4 x 4 | 4.95 | 13.9 | 293 |
| 4 x 6 | 3.30 | 16.0 | 400 |
