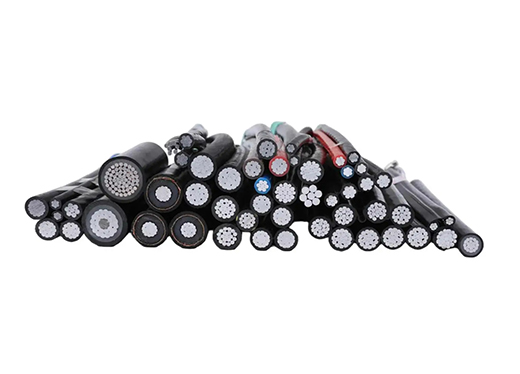

- Aerial Bundled Cable (ABC Cable) is a widely used overhead power line solution that replaces traditional bare conductors. It features individually insulated aluminum phase conductors bundled securely around a neutral messenger wire.
- This insulated design drastically reduces the risk of electrical faults from tree branches or extreme weather, significantly lowers maintenance costs, and maximizes safety in both congested urban grids and remote rural electrification projects.
Product Introduction
As a primary manufacturer, RS engineers and supplies a complete portfolio of Aerial Bundled Cables tailored to international utility specifications (including IEC, NFC, and ASTM standards). Whether you are sourcing for a local distribution network or a major public tender, our production lines deliver:

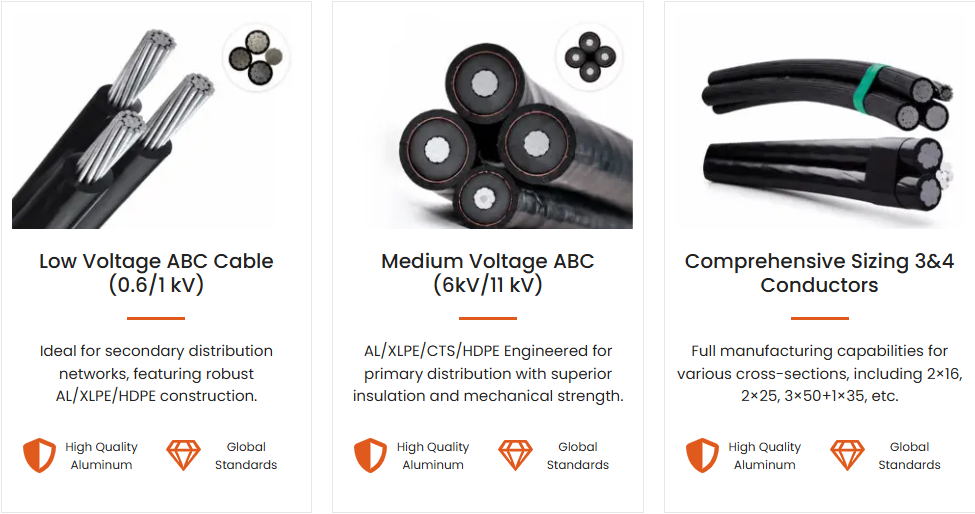

Technical Specifications & Manufacturing Standards
RS manufactures a full range of Aerial Bundled Cables in accordance with both IEC 60502-1 and NF C 33-209 standards.
Our IEC 60502-1 ABC cables are designed for low-voltage overhead power distribution networks worldwide, providing reliable insulation, mechanical strength, and long-term performance in utility and infrastructure projects.
We also produce NFC 33-209 ABC cables, one of the most widely specified standards for overhead distribution systems in Latin America, Africa, the Middle East, and other international markets, offering excellent durability and performance under demanding environmental conditions.
| Number of Conductor Cross-Section |
Insulated Wires | Messenger | Finished Cable | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Distribution Line | Street Lighting | Diameter of Messenger Wire |
Min. Tensile Strength |
Resistance of 20°C |
App. Max Bundle Diameter |
App. Net Weight |
|||||
| Number & Cross-section |
Diameter of Wires |
Resistance of 20°C |
Current Carrying Capacity 30°C |
Number & Cross-section |
Current Carrying Capacity |
||||||
| mm² | mm² | mm | ohm/km | A | mm² | A | mm | KN | ohm/km | mm | kg/km |
| 2×16 | 2×16 | 4.6 | 1.91 | 93 | – | – | – | – | – | 15 | 132 |
| 2×25 | 2×25 | 5.9 | 1.2 | 122 | – | – | – | – | – | 18.5 | 200 |
| 2×35 | 2×35 | 6.9 | 0.868 | 129 | – | – | – | – | – | 22 | 280 |
| 4×35 | 4×35 | 6.9 | 0.868 | 131 | – | – | – | – | – | 26 | 550 |
| 3×25+54.6 | 3×25 | 5.9 | 1.2 | 112 | – | – | 9.6 | 16 | 0.63 | 30 | 470 |
| 3×25+1×16+54.6 | 3×25 | 5.9 | 1.2 | 112 | 1×16 | 60 | 9.6 | 16 | 0.63 | 30 | 570 |
| 3×35+54.6 | 3×35 | 6.9 | 0.868 | 138 | – | – | 9.6 | 16 | 0.63 | 33 | 580 |
| 3×35+2×16+54.6 | 3×35 | 6.9 | 0.868 | 138 | 2×16 | 9.6 | 16 | 0.63 | 33 | 750 | |
| 3×50+54.6 | 3×50 | 8.1 | 0.641 | 168 | – | – | 9.6 | 16 | 0.63 | 36 | 720 |
| 3×50+1×16+54.6 | 3*50 | 8.1 | 0.641 | 168 | 1×16 | 60 | 9.6 | 16 | 0.63 | 36 | 820 |
| 3×70+54.6 | 3×70 | 9.7 | 0.443 | 213 | – | – | 9.6 | 16 | 0.63 | 38 | 930 |
| 3×70+1×16+54.6 | 3×70 | 9.7 | 0.443 | 213 | 1×16 | 60 | 9.6 | 16 | 0.63 | 38 | 1030 |
Standard and custom conductor sizes, messenger configurations, and alloy options are available to meet specific project requirements.
Applications and Use Cases
RS Aerial Bundled Cables are engineered to deliver reliable power across diverse and challenging environments.
Urban Power Distribution Networks

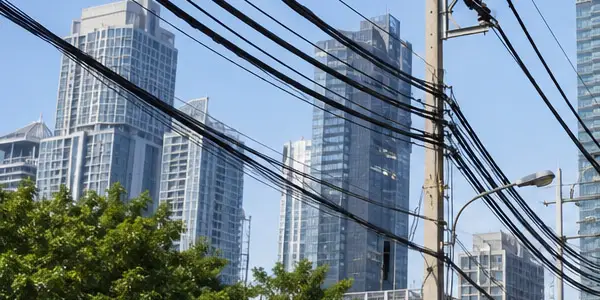

In densely populated urban environments, safety is the top priority. ABC cables significantly reduce the risk of accidental electrocution and phase-to-phase faults compared to traditional lines. They require a narrower right-of-way, minimize tree-trimming maintenance costs, and offer a much cleaner aesthetic for city infrastructure.
Rural Electrification Projects

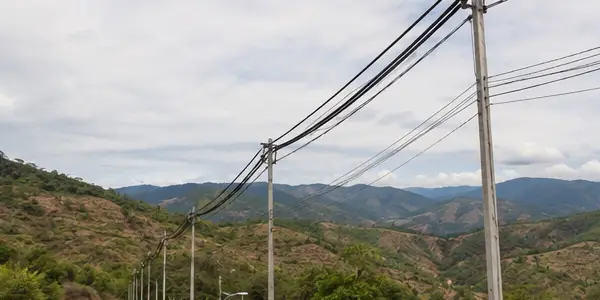

Extending the grid to remote communities requires cost-effective and durable solutions. ABC cables provide straightforward installation over challenging terrains—from coastal regions to mountainous areas—without the high costs of underground trenching.
Industrial Complexes & Manufacturing

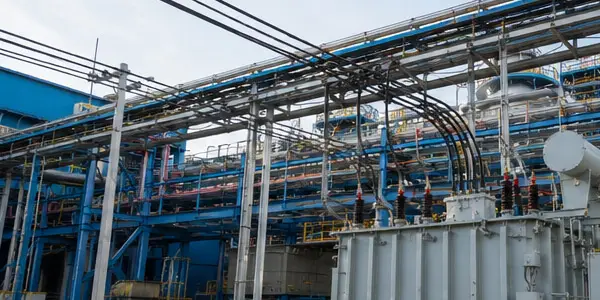

Heavy-duty manufacturing facilities require stable, high-current capacity. Our cables offer exceptional reliability for continuous operations, featuring robust insulation that resists chemical contamination and environmental wear common in industrial zones.
Renewable Energy Installations

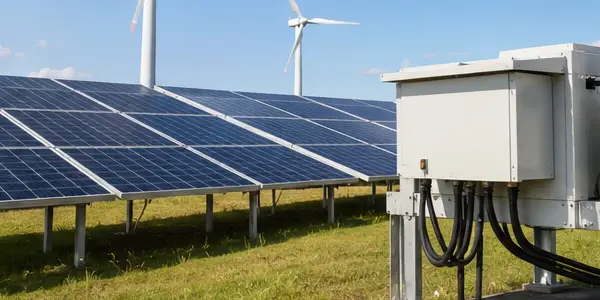

As the global transition to green energy accelerates, RS ABC cables provide vital infrastructure for the renewable sector. They are heavily utilized for solar farm internal cabling, wind turbine interconnections, and modern microgrid distribution networks.
ABC Cable vs. Bare Conductor: A Technical Comparison
When upgrading or designing overhead power lines, engineers must choose between insulated bundled cables and traditional bare conductors.
It is important to note that most conventional overhead products (such as standard ACSR or AAC) are simply bare aluminum conductors with zero insulation. While bare conductors are highly cost-effective for long-distance transmission, they leave live parts exposed.
RS’s ABC cables wrap each phase conductor in advanced XLPE insulation. Here is how they compare:
ABC Cable vs. Bare Conductor
| Feature | RS Aerial Bundled Cable (ABC) | Traditional Bare Conductor (ACSR/AAC) |
|---|---|---|
| Safety Profile | High – Fully insulated conductors prevent accidental contact. | Low – Exposed live parts risk faults from wildlife or weather. |
| Weather & Tree Faults | Excellent – Highly resistant to wind clashing and falling branches. | Moderate – Prone to short circuits from debris and wind. |
| Maintenance Needs | Low – Drastically reduces required tree-trimming and line repairs. | High – Requires constant clearance maintenance. |
| Space Requirements | Minimal – Bundled design requires a much smaller right-of-way. | Significant – Requires wide spacing between phases. |
| Lifecycle ROI | High – Higher initial investment offset by lower maintenance costs. | Moderate – Lower upfront cost, but higher lifetime maintenance. |
Industry Compliance and Certifications
RS maintains unwavering commitment to international quality and safety standards. Our ABC cables hold certifications from major global testing organizations.
- ISO 9001: Quality management systems
- ISO 14001: Environmental management systems
- IEC Standards: International Electrotechnical Commission compliance
- ASTM Standards: American Society for Testing and Materials requirements
- Local Authority Approvals: Regional electrical safety certifications
Quality Assurance Process of ABC Cable
Raw Material Inspection
– Conductor alloy composition verification
– Insulation material quality testing
– Dimensional accuracy checks
Production Process Controls
– ABC cable continuous monitoring during manufacturing
– In-process quality checkpoints
– Statistical process control
Final Product Testing
– ABC cable electrical performance verification
– Mechanical strength testing
– Environmental resistance evaluation
– Dimensional compliance verification
